Capacitor Discharger 10-1000V – Fast Voltage Discharge Tool
The Capacitor Discharger 10-1000V is a professional tool designed for safe and rapid capacitor discharge in electronic circuits. With a voltage range of 10V to 1000V, it protects both the user and the device by releasing stored electrical energy quickly and safely.
This discharger is ideal for electricians, technicians, and DIY electronics enthusiasts who work with high-voltage capacitors, power supplies, or other electronic equipment. Its compact and durable design ensures efficient, reliable, and safe operation in all capacitor maintenance tasks.
Key Features
⚡ Fast Discharge Protection – Quickly releases stored capacitor voltage for safe handling.
🔌 Wide Voltage Range (10-1000V) – Compatible with most electronic devices and circuits.
🛠 Professional Electrician Tool – Essential for capacitor maintenance, repair, and testing.
💡 Durable & Portable Design – Compact size for easy carrying and repeated use.
✅ Safe Operation – Reduces risk of electric shock during capacitor handling.
Applications
-
Discharging high-voltage capacitors safely
-
Electronics repair and maintenance
-
Electrical and electronic testing labs
-
DIY electronics and circuit projects
-
Power supply capacitor maintenance
The Capacitor Discharger 10-1000V is a must-have safety tool for anyone working with capacitors or high-voltage electronic circuits, ensuring fast, safe, and reliable voltage discharge.
SPECIFICATIONS
Application1: Protection Electrician
Application2: Fast Discharging
Apply to: 10-1000V
Battery Included: No
Brand Name: YEKMLCO
Certification: CE
Choice: yes
DIY Supplies: Electrical
Dimensions: 95*58*31mm
High-concerned chemical: None
Model Number: FDQ1A
Origin: United Kingdom
Product: Capacitor Discharger
Voltage range: Other
semi_Choice: yes
Product Parameters

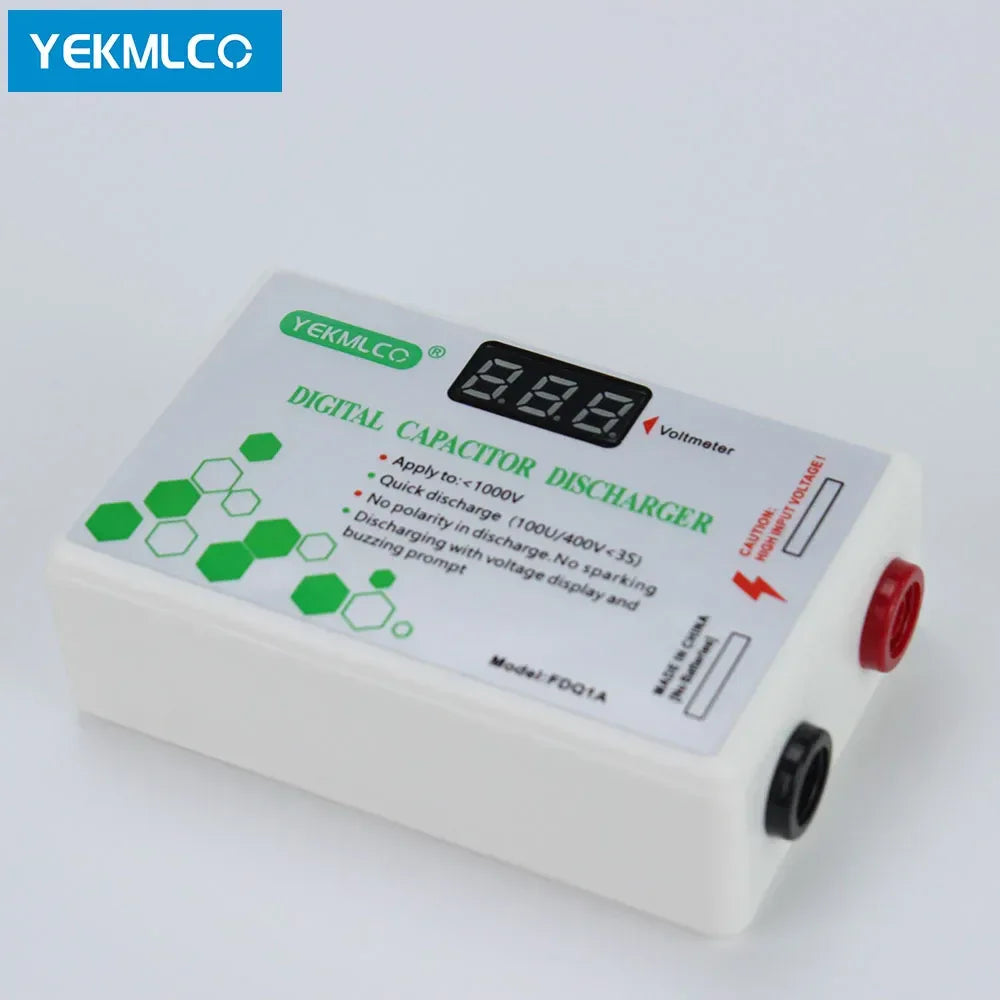

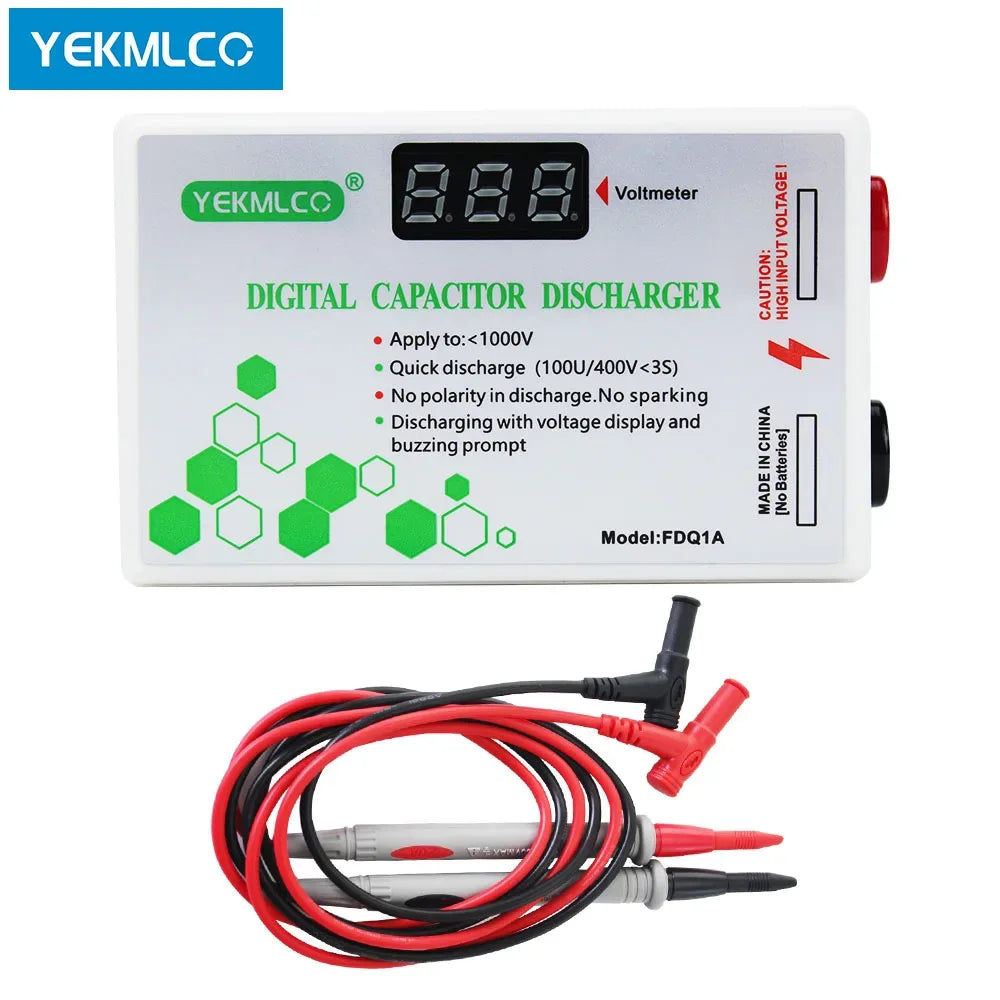

Model: FDQ1A
Apply to:<1000V
Quick Discharge:(100U/400V, <3S)
Tester Size: 95mm*58mm*31mm

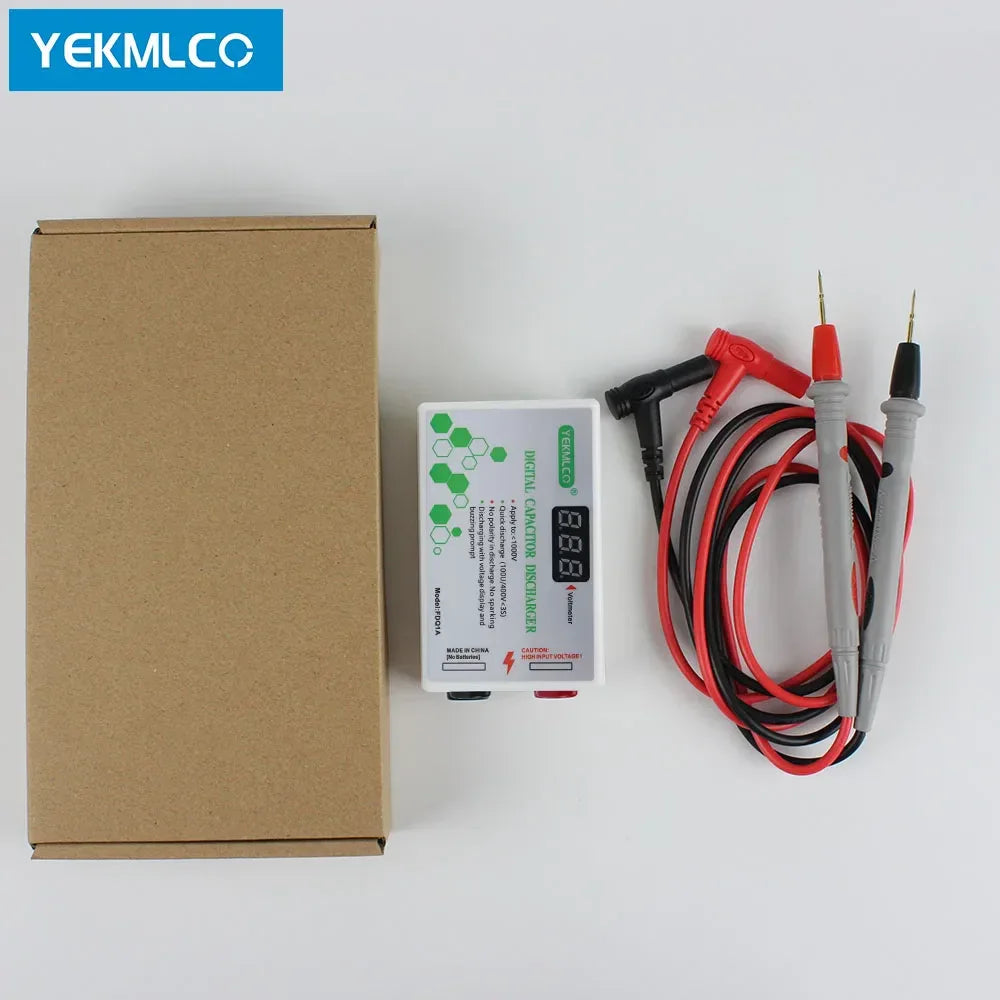

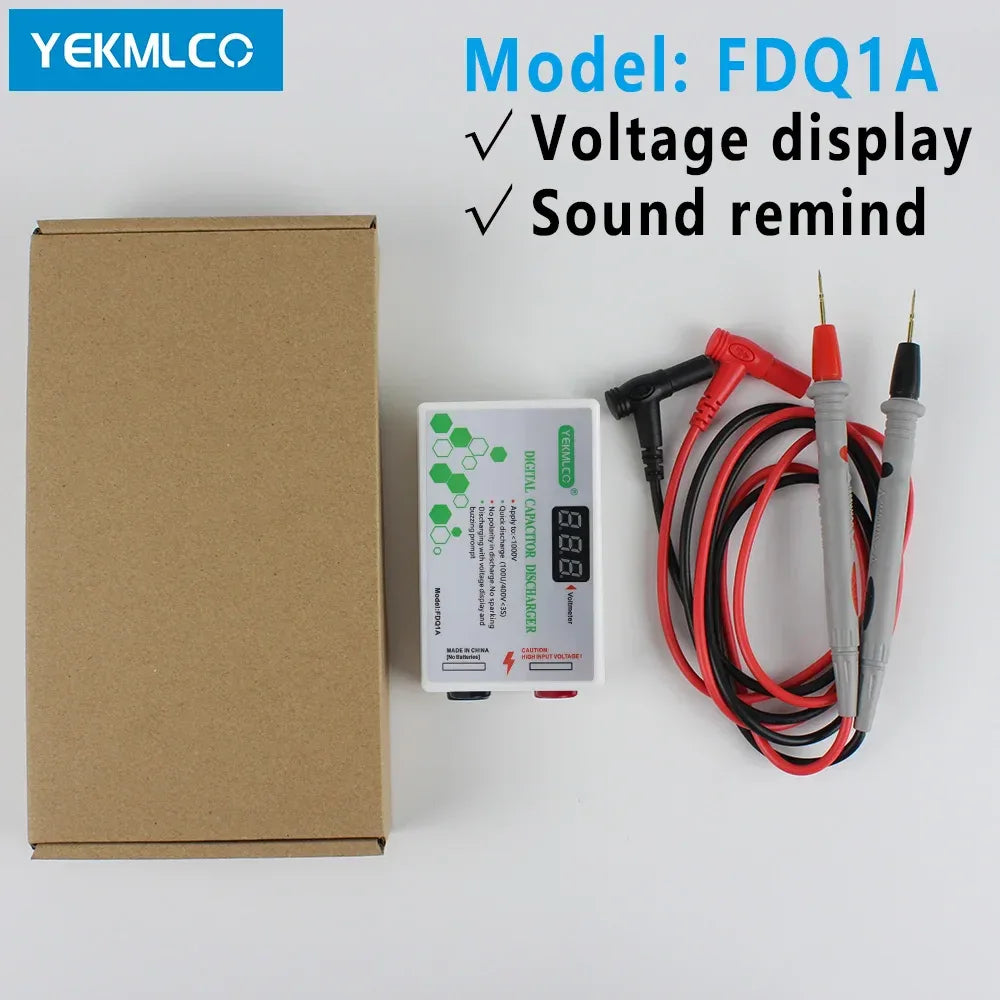

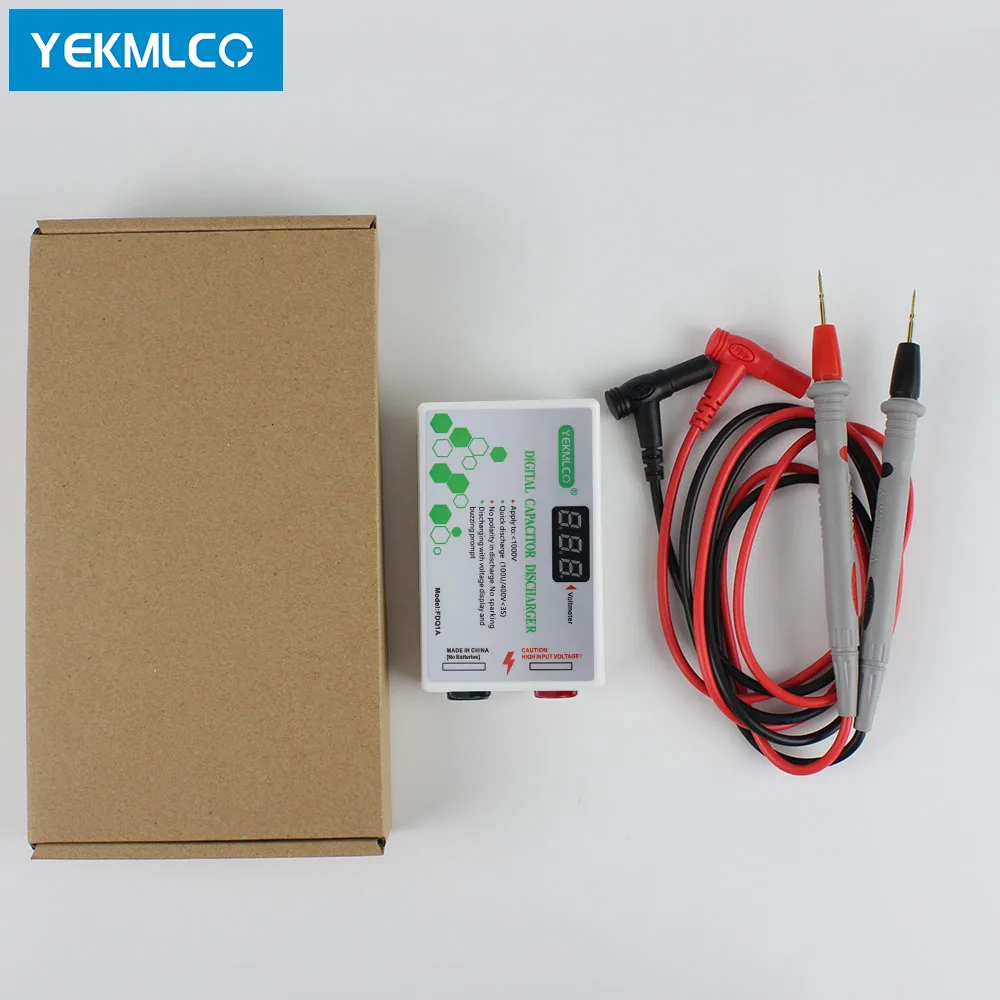

Package List:
1x Digital Capacitor Discharger
1x Test Probes (black and Red)
1x User Manual
Weight: 195g
FUNCTION INSTRUCTION
A.The capacitor discharger is designed for discharge the capacitors(10-1000V) of electric appliances (such as: switching power supply; digital cameras, mobile phones, power panel of TV etc. in maintenance). Can't discharge the battery.
B.It avoids electric shock and short circuit effectively.
C.The voltmeter can display the voltage change during discharge. When the voltmeter is off, the discharge is completed.
D.No polarity in discharge.No sparking.
E.Constant current discharging.
DIRECTIONS
A.Discharger self-test: Short contact the AC110-220V power supply with the probes, there is screen display and buzzing sound reminder, it shows the discharger work properly.

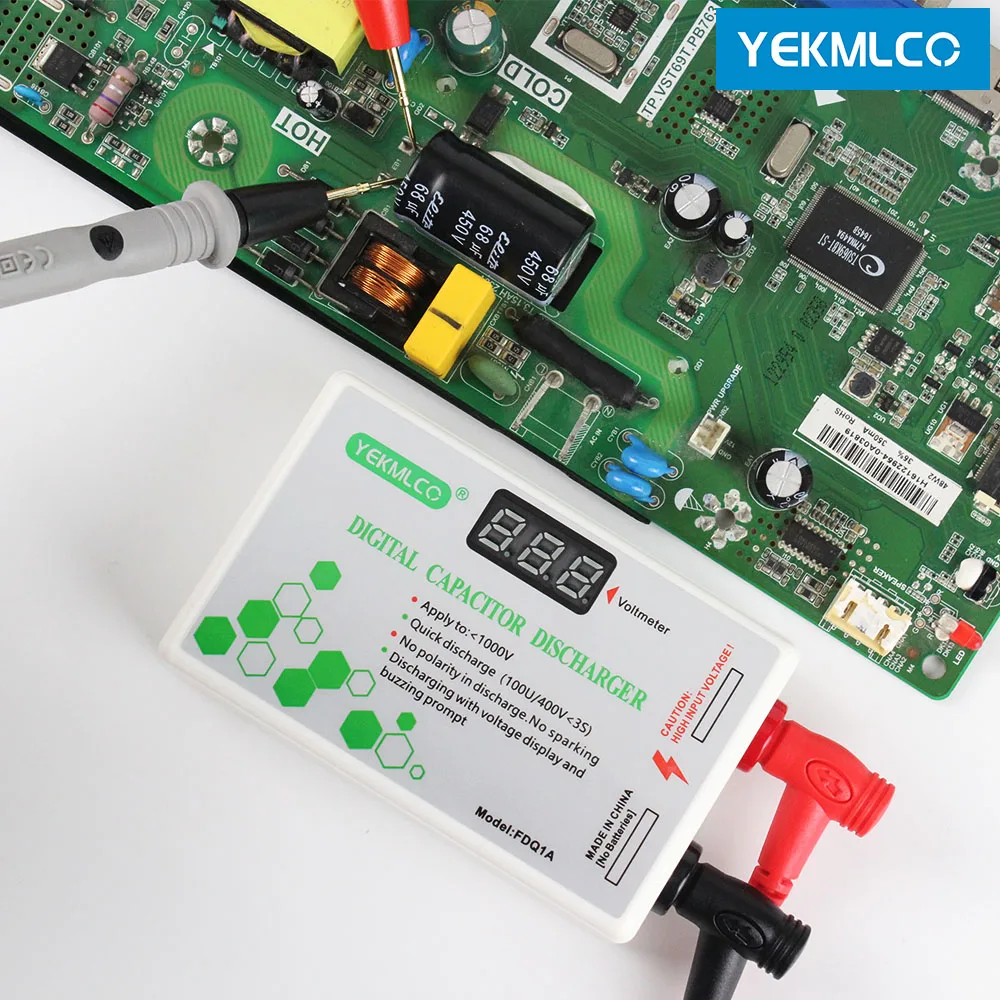

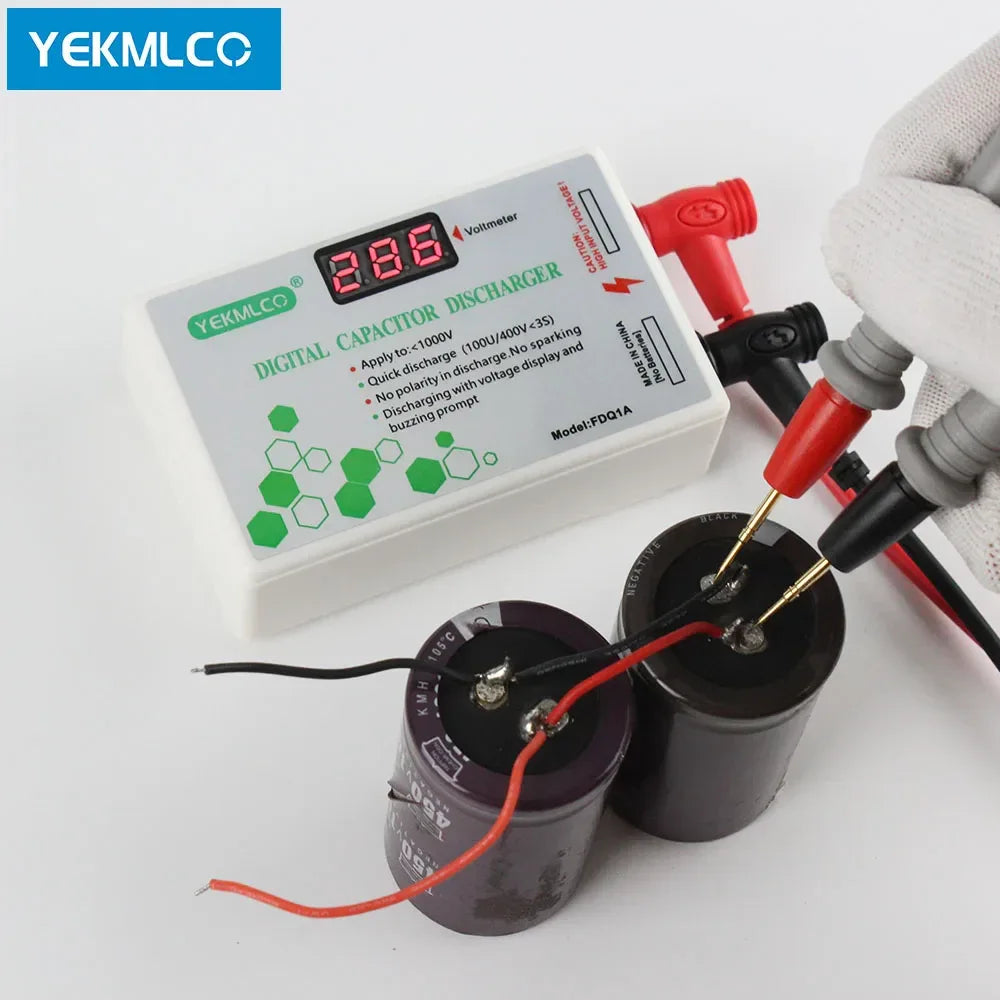

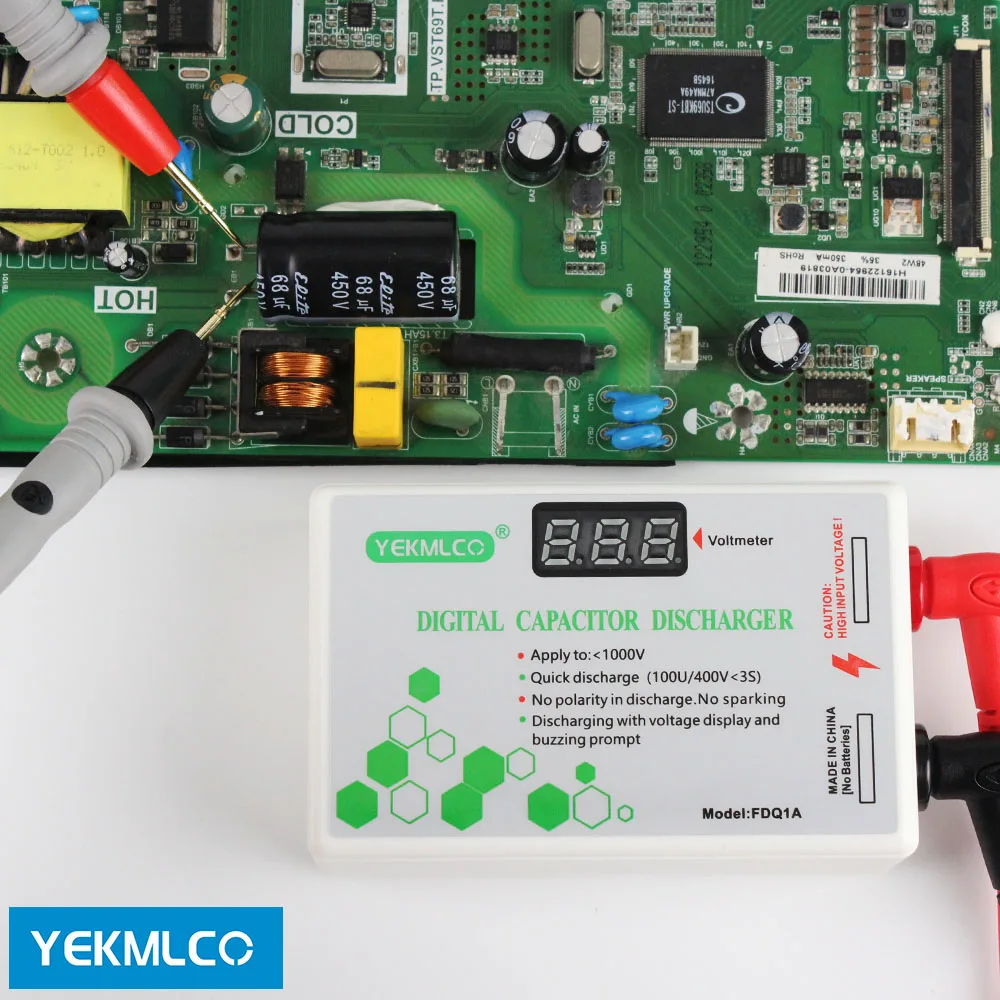

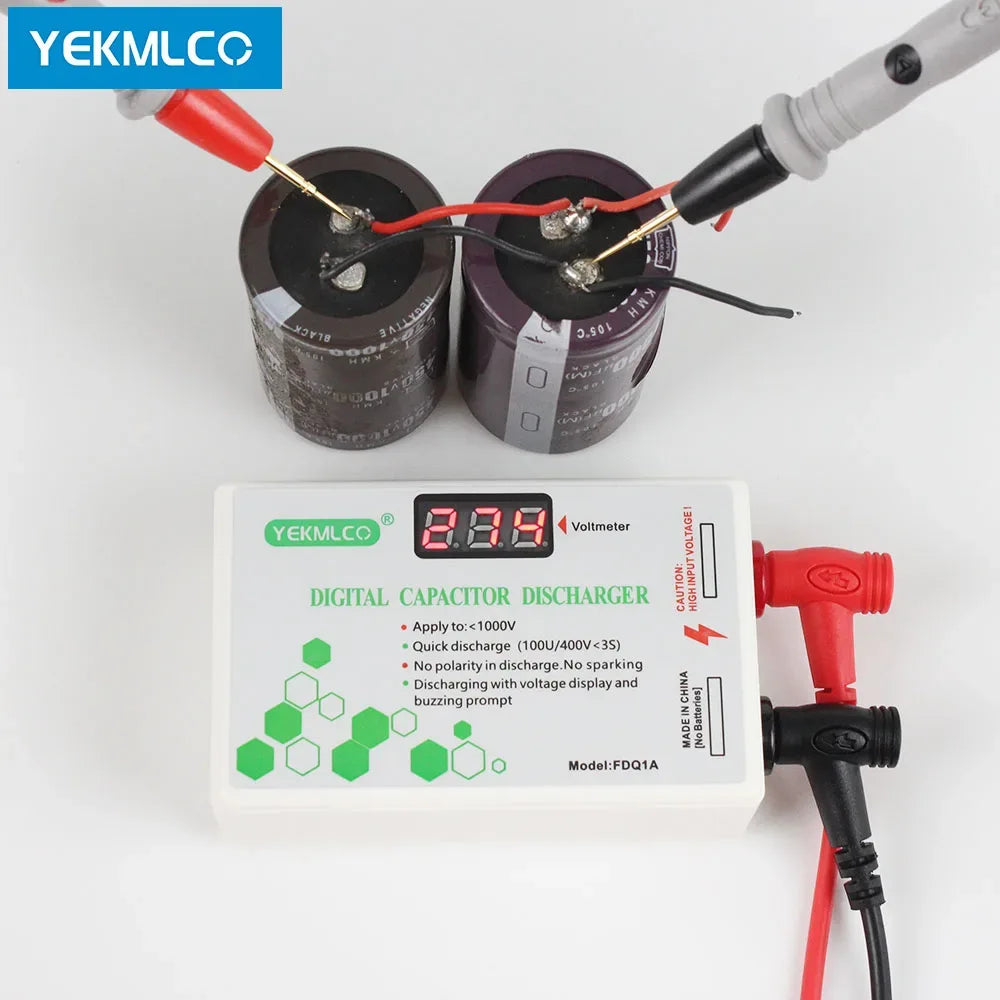

B.The probes contact the capacitor with no polarity, then discharge starts. Screen display OR buzzing sound.
C.The discharger discharges to about 6V, the screen display turns off and the sound disappears. After 2-5 seconds, the discharger can continue to discharge to below 2V.
NOTE
You can only discharge high-voltage(10-1000V) capacitors offline, and cannot be used as an electronic load (Do not discharge while charging). Can’t discharge for Electrostatic double-layer capacitor.
